Install Hadoop 3.0.0 on Windows (Single Node)

event 2018-02-18 visibility 57,917 comment 37 insights toc
more_vert
insights Stats
Install Hadoop 3.0.0 on Windows (Single Node)

This page summarizes the steps to install Hadoop 3.0.0 on your Windows environment. Reference page:

https://wiki.apache.org/hadoop/Hadoop2OnWindows

https://hadoop.apache.org/docs/r1.2.1/cluster_setup.html

infoA newer version of installation guide for latest Hadoop 3.2.1 is available. I recommend using that to install as it has a number of new features. Refer to the following article for more details.

Install Latest Hadoop 3.2.1 on Windows 10 Step by Step Guide

Tools and Environment

  • GIT Bash
  • Command Prompt
  • Windows 10

Download Binary Package

Download the latest binary from the following site:

http://hadoop.apache.org/releases.html

In my case, I am saving the file to folder: F:\DataA nalytics

UnZip binary package

Open Git Bash, and change directory (cd) to the folder where you save the binary package and then unzip:

$ cd F:\DataAnalytics
fahao@Raymond-Alienware MINGW64 /f/DataAnalytics
$ tar -xvzf  hadoop-3.0.0.tar.gz

In my case, the Hadoop binary is extracted to: F:\DataAnalytics\hadoop-3.0.0

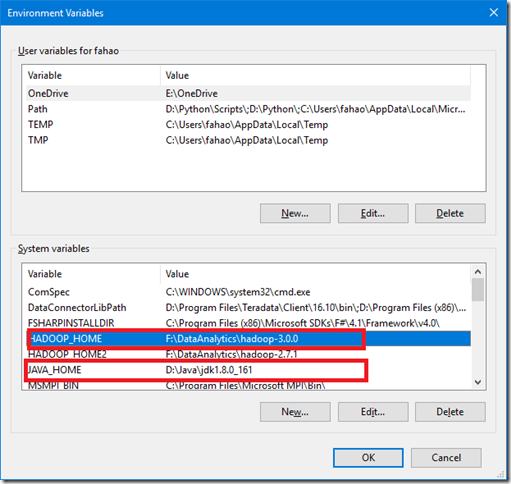

Setup environment variables

Make sure the following environment variables are set correctly:

  • JAVA_HOME: pointing to your Java JDK installation folder.
  • HADOOP_HOME: pointing to your Hadoop folder in the previous step.


Then add ‘%JAVA_HOME%/bin’ and ‘%HADOOP_HOME%/bin’ into Path environment variable like the following screenshot:


Verify your setup

You should be able to verify your settings via the following command:

F:\DataAnalytics\hadoop-3.0.0>hadoop -version
java version "1.8.0_161"
Java(TM) SE Runtime Environment (build 1.8.0_161-b12)
Java HotSpot(TM) 64-Bit Server VM (build 25.161-b12, mixed mode)

HDFS configurations

Edit file hadoop-env.cmd

Change this file in %HADOOP_HOME%/etc/hadoop directory to add the following lines at the end of file:

set HADOOP_PREFIX=%HADOOP_HOME%
set HADOOP_CONF_DIR=%HADOOP_PREFIX%\etc\hadoop
set YARN_CONF_DIR=%HADOOP_CONF_DIR%
set PATH=%PATH%;%HADOOP_PREFIX%\bin

Edit file core-site.xml

Make sure the following configurations are existing:

<configuration>
   <property>
     <name>fs.defaultFS</name>
     <value>hdfs://0.0.0.0:19000</value>
   </property> </configuration>

By default, the above property configuration doesn’t exist.

Edit file hdfs-site.xml

Make sure the following configurations are existing (you can change the file path to your own paths):

<configuration>
   <property>
     <name>dfs.replication</name>
     <value>1</value>
   </property>
   <property>
     <name>dfs.name.dir</name>
     <value>file:///F:/DataAnalytics/dfs/namespace_logs</value>
   </property>
   <property>
     <name>dfs.data.dir</name>
     <value>file:///F:/DataAnalytics/dfs/data</value>
   </property> </configuration>

The above configurations setup the HFDS locations for storing namespace, logs and data files.

Edit file workers

Ensure the following content is existing:

localhost

YARN configurations

Edit file mapred-site.xml

Edit mapred-site.xml under %HADOOP_HOME%\etc\hadoop and add the following configuration, replacing %USERNAME% with your Windows user name.

<configuration>
   <property>
      <name>mapreduce.job.user.name</name>
      <value>%USERNAME%</value>
    </property>
   <property>
      <name>mapreduce.framework.name</name>
      <value>yarn</value>
    </property>
  <property>
     <name>yarn.apps.stagingDir</name>
     <value>/user/%USERNAME%/staging</value>
   </property>
  <property>
     <name>mapreduce.jobtracker.address</name>
     <value>local</value>
   </property>
</configuration>

Edit file yarn-site.xml

Make sure the following entries are existing:

<configuration>
   <property>
     <name>yarn.server.resourcemanager.address</name>
     <value>0.0.0.0:8020</value>
   </property>
  <property>
     <name>yarn.server.resourcemanager.application.expiry.interval</name>
     <value>60000</value>
   </property>
  <property>
     <name>yarn.server.nodemanager.address</name>
     <value>0.0.0.0:45454</value>
   </property>
  <property>
     <name>yarn.nodemanager.aux-services</name>
     <value>mapreduce_shuffle</value>
   </property>
  <property>
     <name>yarn.nodemanager.aux-services.mapreduce.shuffle.class</name>
     <value>org.apache.hadoop.mapred.ShuffleHandler</value>
   </property>
  <property>
     <name>yarn.server.nodemanager.remote-app-log-dir</name>
     <value>/app-logs</value>
   </property>
  <property>
     <name>yarn.nodemanager.log-dirs</name>
     <value>/dep/logs/userlogs</value>
   </property>
  <property>
     <name>yarn.server.mapreduce-appmanager.attempt-listener.bindAddress</name>
     <value>0.0.0.0</value>
   </property>
  <property>
     <name>yarn.server.mapreduce-appmanager.client-service.bindAddress</name>
     <value>0.0.0.0</value>
   </property>
  <property>
     <name>yarn.log-aggregation-enable</name>
     <value>true</value>
   </property>
  <property>
     <name>yarn.log-aggregation.retain-seconds</name>
     <value>-1</value>
   </property>
  <property>
     <name>yarn.application.classpath</name>
     <value>%HADOOP_CONF_DIR%,%HADOOP_COMMON_HOME%/share/hadoop/common/*,%HADOOP_COMMON_HOME%/share/hadoop/common/lib/*,%HADOOP_HDFS_HOME%/share/hadoop/hdfs/*,%HADOOP_HDFS_HOME%/share/hadoop/hdfs/lib/*,%HADOOP_MAPRED_HOME%/share/hadoop/mapreduce/*,%HADOOP_MAPRED_HOME%/share/hadoop/mapreduce/lib/*,%HADOOP_YARN_HOME%/share/hadoop/yarn/*,%HADOOP_YARN_HOME%/share/hadoop/yarn/lib/*</value>
   </property> </configuration>

Initialize environment variables

Run hadoop-env.cmd to setup environment variables. For my case, the file path is:

%HADOOP_HOME%\etc\hadoop\hadoop-env.cmd

Format file system

Run the following command to format the file system:

hadoop namenode -format

The command should print out some logs like the following (the highlighted path may vary base on your HDFS configurations):

2018-02-18 21:29:41,501 INFO namenode.FSImage: Allocated new BlockPoolId: BP-353327356-172.24.144.1-1518949781495
2018-02-18 21:29:41,817 INFO common.Storage: Storage directory F:\DataAnalytics\dfs\namespace_logs has been successfully formatted.
2018-02-18 21:29:41,826 INFO namenode.FSImageFormatProtobuf: Saving image file F:\DataAnalytics\dfs\namespace_logs\current\fsimage.ckpt_0000000000000000000 using no compression
2018-02-18 21:29:41,934 INFO namenode.FSImageFormatProtobuf: Image file F:\DataAnalytics\dfs\namespace_logs\current\fsimage.ckpt_0000000000000000000 of size 390 bytes saved in 0 seconds.
2018-02-18 21:29:41,969 INFO namenode.NNStorageRetentionManager: Going to retain 1 images with txid >= 0

Start HDFS daemons

Run the following command to start the NameNode and DataNode on localhost.

%HADOOP_HOME%\sbin\start-dfs.cmd

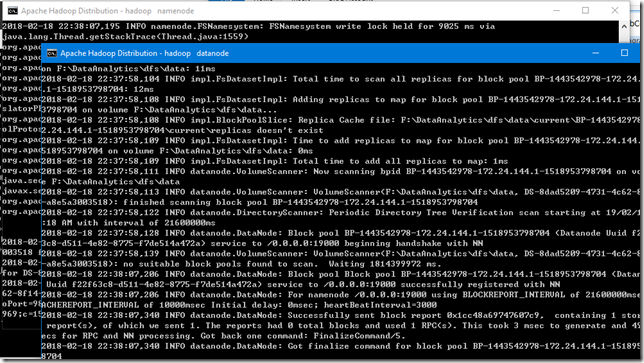

The above command line will open two Command Prompt Windows: one for namenode and another for datanode.


To verify, let’s copy a file to HDFS:

%HADOOP_HOME%\bin\hdfs dfs -put file:///F:/DataAnalytics/test.txt /
And then list the files in HDFS:
%HADOOP_HOME%\bin\hdfs dfs -ls /

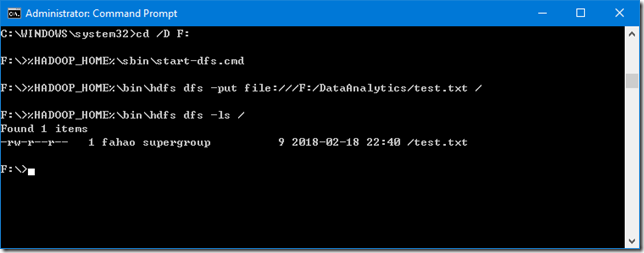

You should get some result similiar to the following screenshot:


Start YARN daemons

Start YARN through the following command:

%HADOOP_HOME%\sbin\start-yarn.cmd

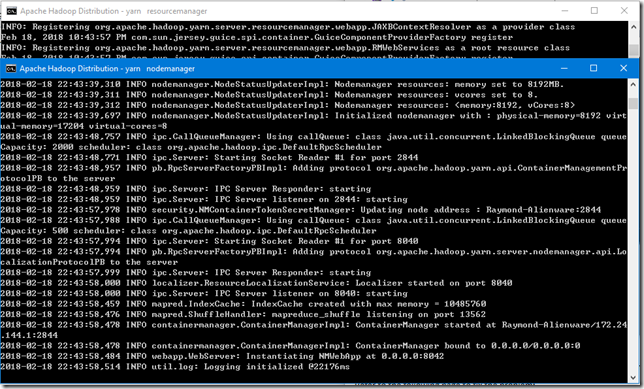

Similar to HDFS, two windows will open:

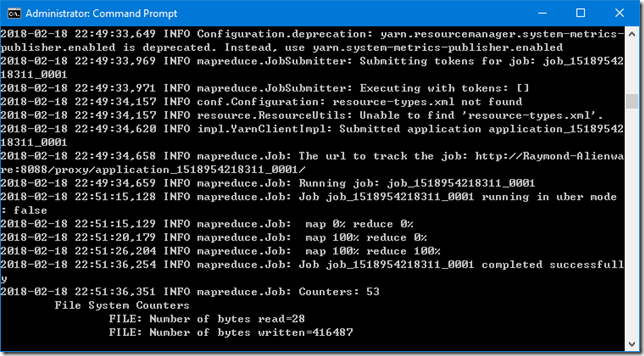

To verify, we can run the following sample job to count word count:

%HADOOP_HOME%\bin\yarn jar %HADOOP_HOME%\share\hadoop\mapreduce\hadoop-mapreduce-examples-3.0.0.jar wordcount /test.txt /out


Web UIs

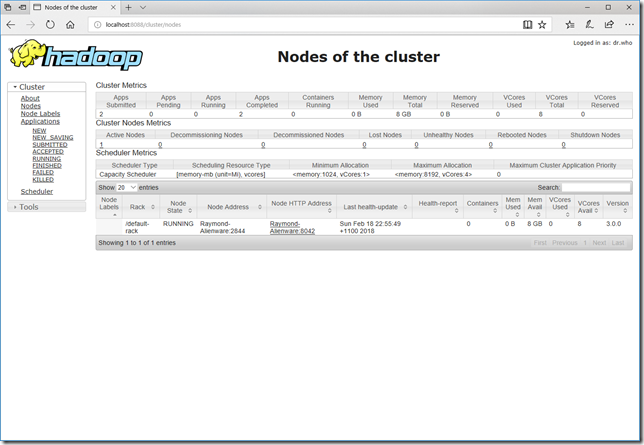

Resource manager

You can also view your job status through YRAN website. The default path is http://localhost:8088


NameNode UI

Default URL: http://localhost:9870

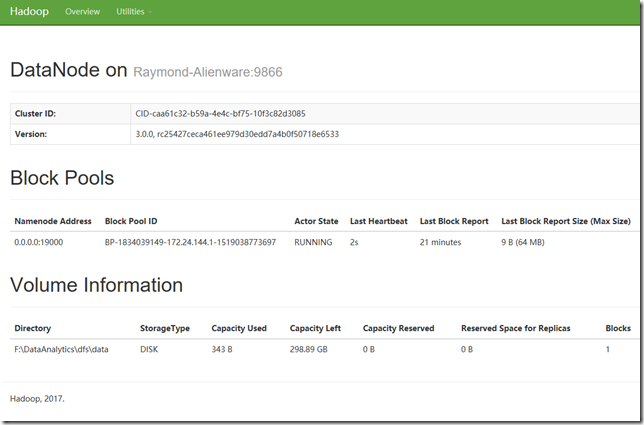

DataNode UI

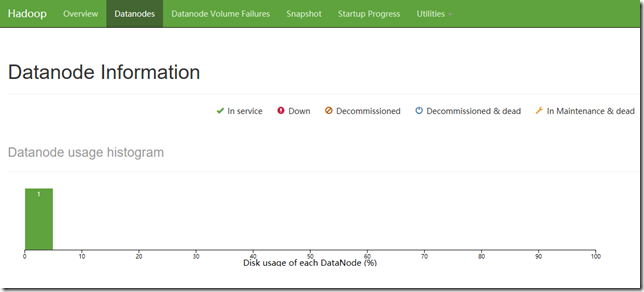

Through name node, you can find out all the data nodes. For my case, i only have single data node with UI URL as http://localhost:9864


Errors and fixes

java.io.FileNotFoundException: Could not locate Hadoop executable: … \hadoop-3.0.0\bin\winutils.exe

Refer to the following page to fix the problem:

https://wiki.apache.org/hadoop/WindowsProblems

java.lang.UnsatisfiedLinkError: org.apache.hadoop.io.nativeio.NativeIO$Windows.access0(Ljava/lang/String;I)

This error is the same as the above one.

Refer to ‘Windows binaries for Hadoop versions (built from the git commit ID used for the ASF relase) ‘

https://github.com/steveloughran/winutils

For this example, I am using Hadoop 3.0.0.

https://github.com/steveloughran/winutils/tree/master/hadoop-3.0.0/bin

To fix it, copy over the above directory to %HADOOP_HOME%/bin.
