Case Scenario

In the previous articles of this serial, I’ve introduced how to use SQL Server as database for online transaction processing, build ETL packages for data integration and create reports. SSAS is another important feature supporting online analytical processing.

Finally, we are going to build a simple multidimensional database to support OLAP in Excel or other tools.

Create SSAS Project

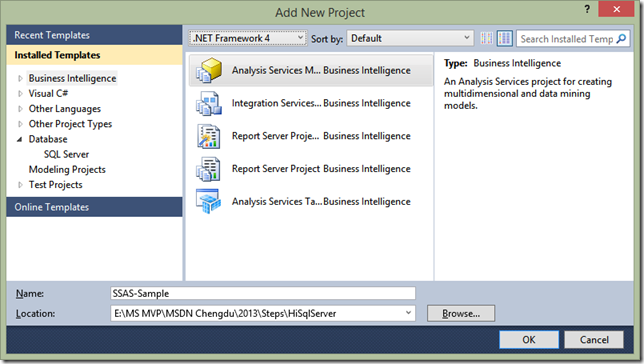

1) Create SSAS project ‘SSAS-Sample’

https://api.kontext.tech/resource/45d23ec9-5af3-5f01-aca3-9004aa237d77

2) Create data source ‘HiSqlServer-Sample’

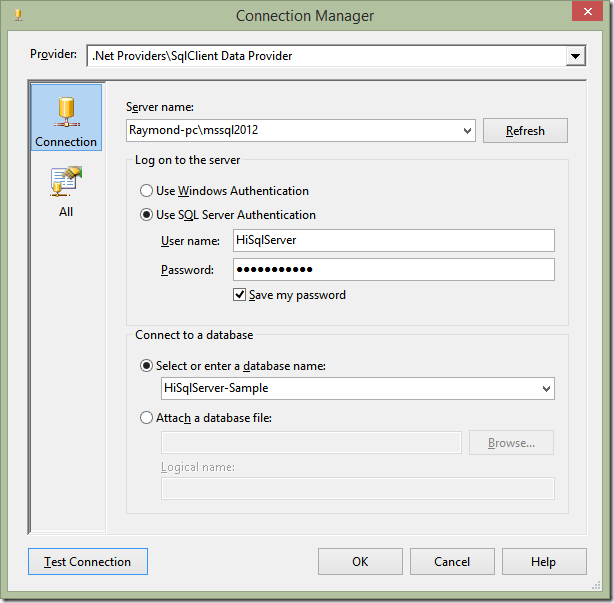

Connect to database using SQL Server authentication.

https://api.kontext.tech/resource/3e6e04d9-be8d-579f-861b-ceebb9dd22e0

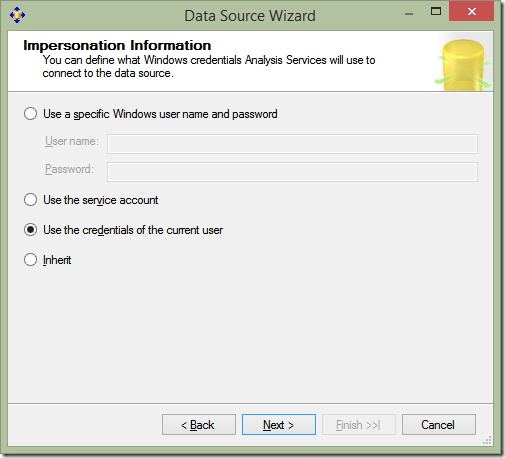

Use the credentials of the current user for Analysis Services to connect to the data source

https://api.kontext.tech/resource/f07d7d96-a833-52e2-a652-3860b7f5ce27

Input the name as ‘HiSqlServer-Sample’ and then save.

3) Create data source view ‘SalesDSV’

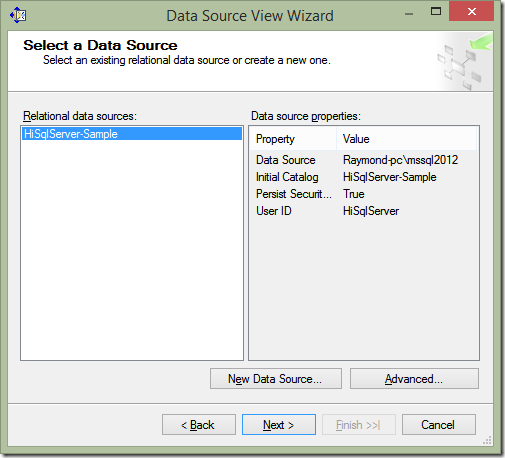

Open the ‘New Data Source View’ dialogue and choose the data source we just created.

https://api.kontext.tech/resource/9abf72bd-c8b6-5cbf-b6ae-9e7f40881d25

Name Matching: Same name as primary key.

Select Tables: Add all the three tables (Areas, Products, Sales).

Input the name as ‘SalesDSV’ and then save the dialogue.

4)Create Dimension DimArea

Create dimension Areas by using Dimension Wizard.

Select Creation Method: Use an existing table.

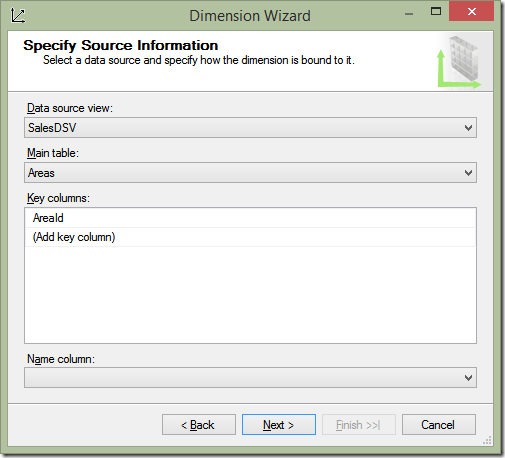

Specify Source Information:

https://api.kontext.tech/resource/0daba586-1e3f-5bea-a743-8513792cc7eb

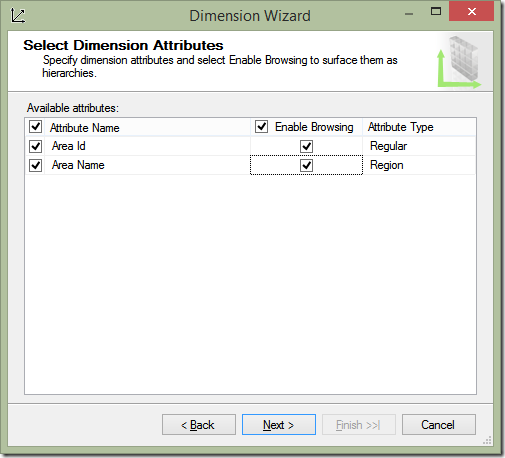

Select Dimension Attributes:

https://api.kontext.tech/resource/86323888-9173-5474-8d10-1abd6c007c4a

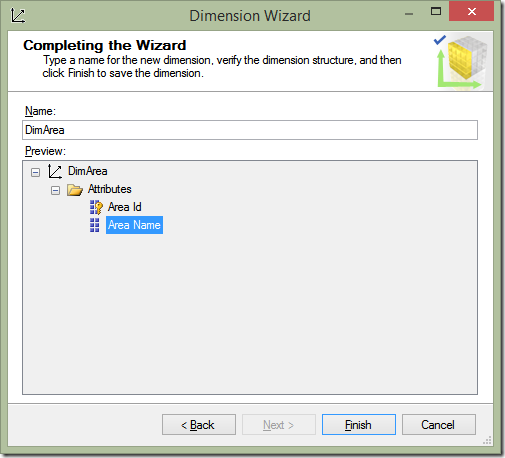

Completing the Wizard:

https://api.kontext.tech/resource/3011692b-b7f8-5e55-890a-48cd3dc06c7f

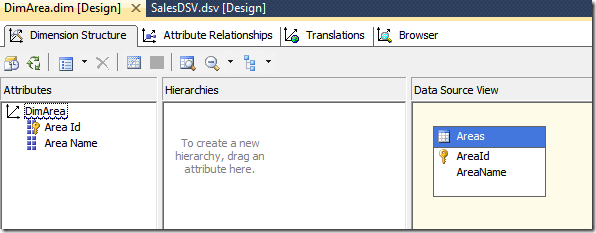

The dimension now looks like the following screenshot:

https://api.kontext.tech/resource/4ebf72c4-cb71-5643-b7f8-e15ada2a5e9d

5) Create dimension DimProduct

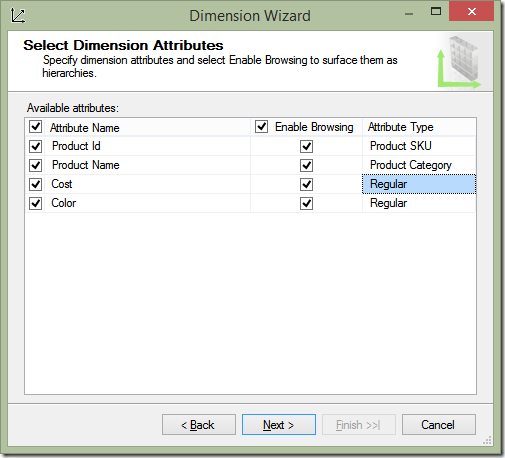

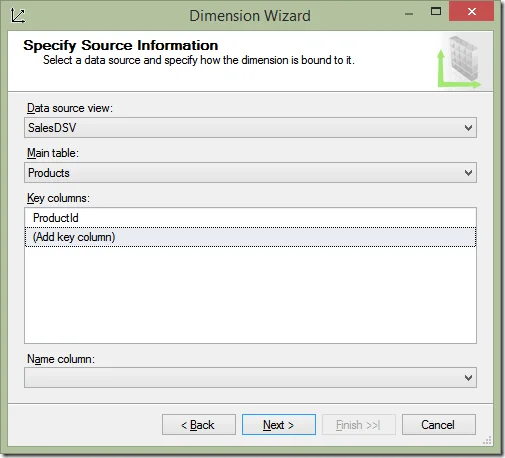

Use same way to create another dimension Products.

https://api.kontext.tech/resource/d15314ee-0b35-5692-9037-2e10827a5bc1

https://api.kontext.tech/resource/00fb5416-4e5f-54a1-a9bf-eb5fc167d0cd

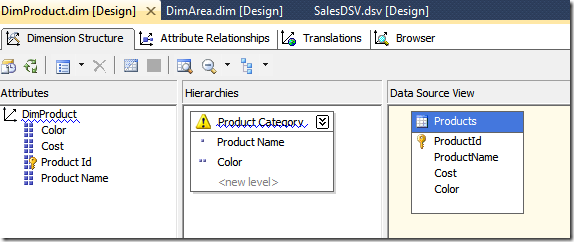

Once the dimension is created, create a hierarchy named ‘Product Category’ using attributes Product Name and Color.

https://api.kontext.tech/resource/cd294b63-4b59-592c-b0a2-646e455ff1c6

6) Create a cube SalesCube

Create the cube by using Cube Wizard.

Select Creation Method: Use an existing table.

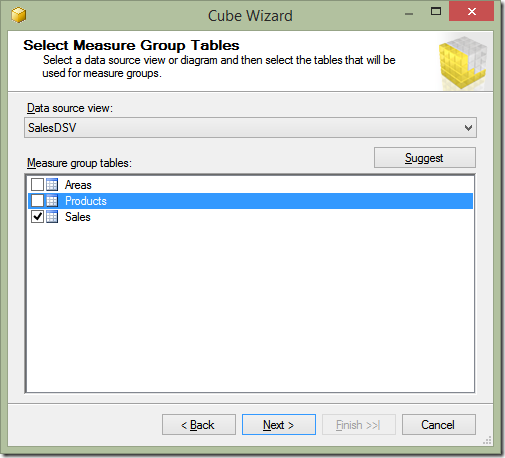

Select Measure Group Tables:

https://api.kontext.tech/resource/2534006a-2fa0-52dc-8579-779a5dcacb2a

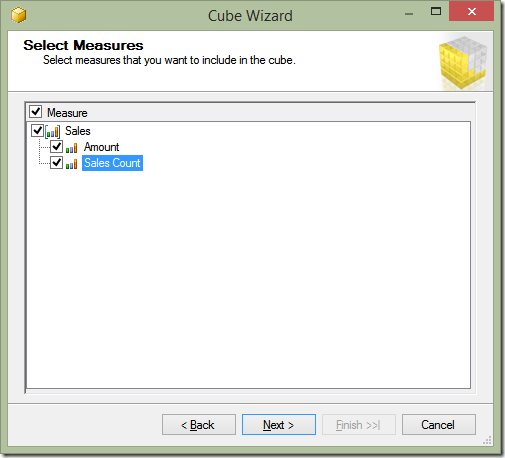

Select Measures:

https://api.kontext.tech/resource/fa0eb9a2-99a2-54ad-a699-65c93cc02de2

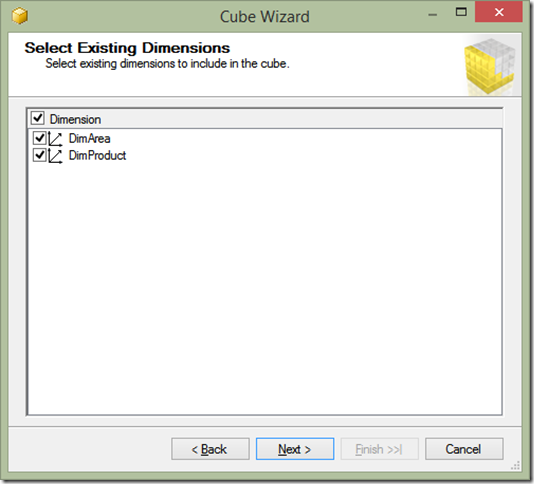

Select Existing Dimensions:

https://api.kontext.tech/resource/b77f49da-426f-5423-b840-10591b2f8d83

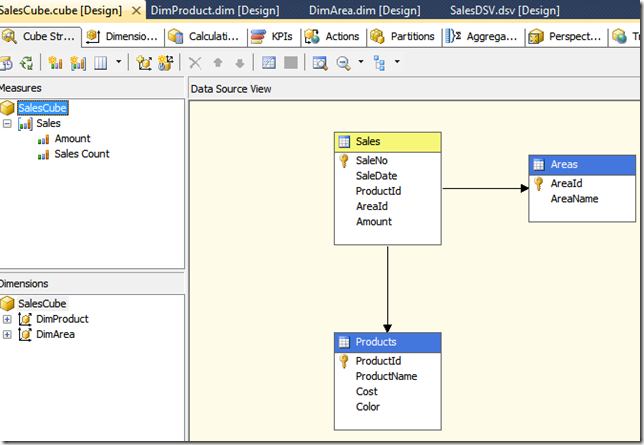

Input cube name as ‘SalesCube’ and save the dialogue.

https://api.kontext.tech/resource/7800af4d-0b0e-540d-94a2-dc8ef83dd0e0

7) Deploy the project

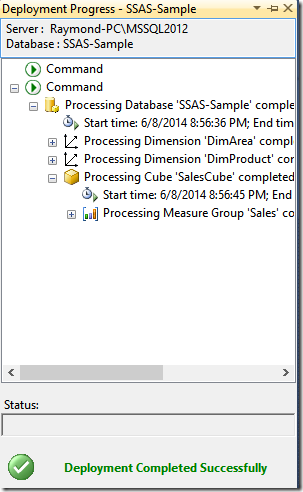

Use the deployment function in Visual Studio to deploy the project.

https://api.kontext.tech/resource/ab329f66-781a-516d-afad-3dd0e0d9c4d3

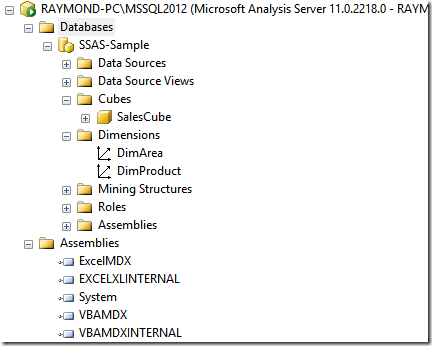

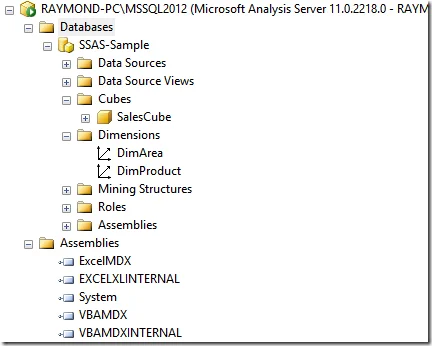

Once it is deployed, you can also query the multidimensional database through SSMS.

https://api.kontext.tech/resource/b5e62d32-922e-538e-b1f7-845bd4478da5

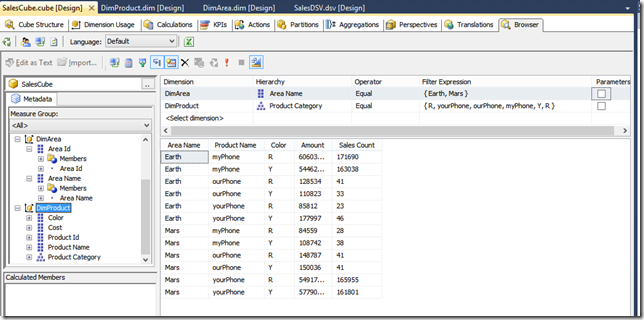

8) Browse the cube

In Visual Studio or SSMS, you can generate all kinds of reports by simply dragging measures and dimension attributes.

https://api.kontext.tech/resource/493f56a2-96c7-5de0-a56e-cb870295a20a

9) OLAP through Excel

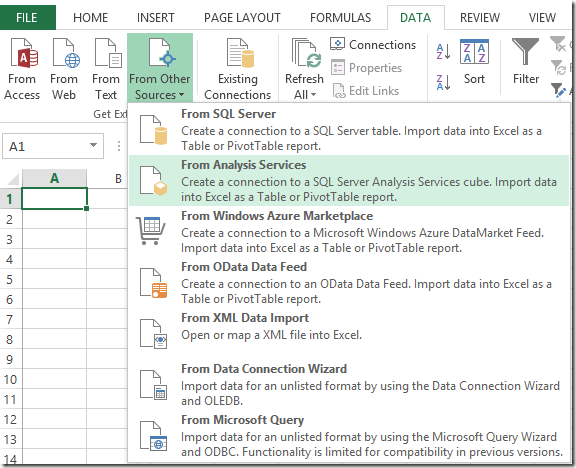

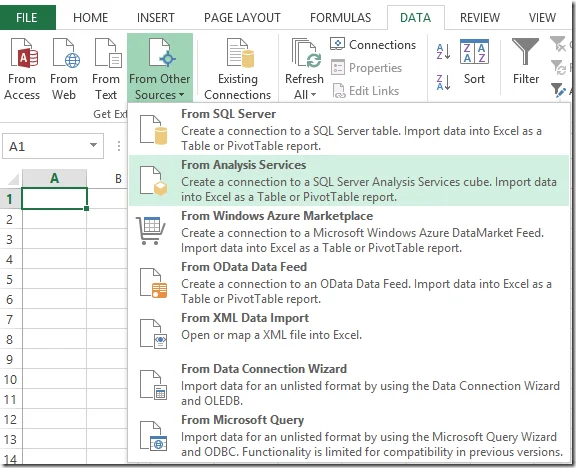

Open Excel and create data source by using ‘From Analysis Services’.

https://api.kontext.tech/resource/b1c4ae42-8eb9-58ea-ad34-d780d36b6af1

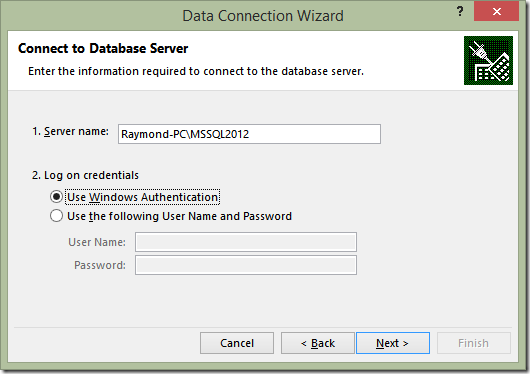

Input the credential:

https://api.kontext.tech/resource/38cf1066-23a9-59f0-b6ca-479b75bfdb09

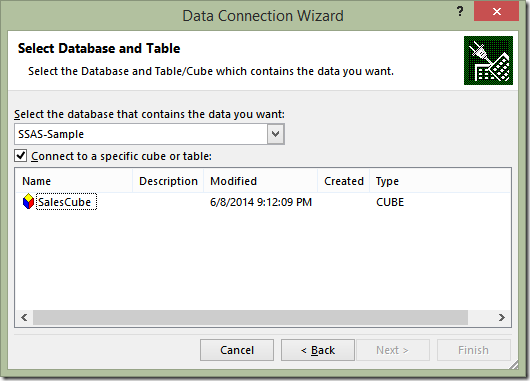

Choose the database and then cube.

https://api.kontext.tech/resource/22aa372e-f571-541e-ac51-98b66ae5678b

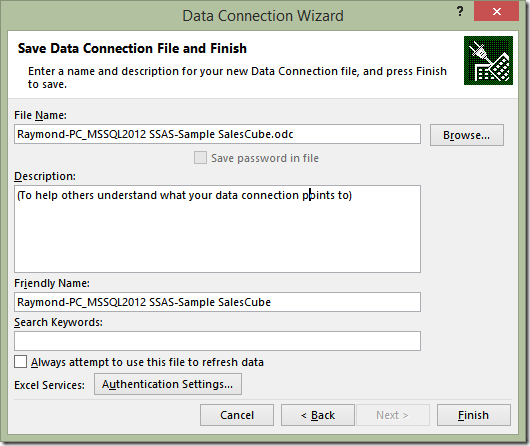

Save the connection file and finish.

https://api.kontext.tech/resource/384648c5-a34a-5815-a6db-b91533cf1b66

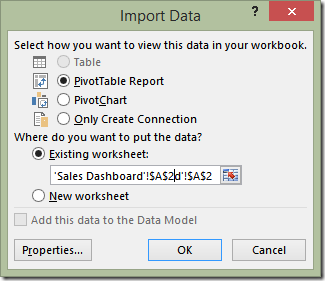

Import the data using PivotTable Report.

https://api.kontext.tech/resource/b142f9b6-02b9-50eb-b6c2-e70f7ede4a90

Now, you are able to do the data analysis through Excel very easily.

https://app.kontext.tech/Images/Uploaded%20Files/DataAndBusinessIntelligence/Windows-Live-Writer_Create-OLAP-Project-using-SSAS_10AE6_image_66.png
