Configure a SQL Server Database as Remote Hive Metastore

In one of my previous post, I showed how to configure Apache Hive 3.0.0 in Windows 10.

Apache Hive 3.0.0 Installation on Windows 10 Step by Step Guide

I didn’t configure Hive metastore thus by default Hive will use embedded mode for metastore. The metadata is stored in Apache Derby database.

However only one user can be active at a time thus won’t be suitable for scenarios that require multiple sessions.  In this post, I’m going to show you how to configure a SQL Server database as a remote metastore for HiveServer2.

Prerequisites

Please configure Hive 3.0.0 first by following the above post.

Create a metastore database in SQL Server

Run the following commands to create a database and also login and user for Hive:

create database hive_metastore;
go
create login hive with password='hive';
go
use hive_metastore
go
create user hive for login hive;
go
alter role db_owner add member hive;
go

The above script will also add user hive into role db_owner.

Download SQL Server JDBC driver

The binary doesn’t include JDBC driver for SQL Server. Thus we need to install it ourselves.

Download SQL Server JDBC driver from Microsoft website:

Download Microsoft JDBC Driver for SQL Server

Copy the suitable JAR file (mssql-jdbc-*.jre8.jar) into $HIVE_HOME/lib folder.

For Ubuntu or other Linux users, use the following command to download:

wget https://github.com/microsoft/mssql-jdbc/releases/download/v7.2.2/mssql-jdbc-7.2.2.jre8.jarcp mssql-jdbc-7.2.2.jre8.jar $HIVE_HOME/lib

* Replace the URL to your own download URL.

*auth folder is only required if you want to use Windows Authentication in Windows systems.

Configure Hive file hive-site.xml

Edit hive-default.xml file (or create one if not existing) in folder $HIVE_HOME/conf.

* You can create the configuration file by using template file hive-default.xml.template.

cp $HIVE_HOME/conf/hive-default.xml.template $HIVE_HOME/conf/hive-site.xml

The above command needs to run in Cygwin terminal.

We need configure the following properties accordingly.

• javax.jdo.option.ConnectionDriverName
• javax.jdo.option.ConnectionURL
• javax.jdo.option.ConnectionUserName
• javax.jdo.option.ConnectionPassword
• hive.metastore.uris
• hive.metastore.db.type

For my environment, they are configured as the following:

<property>   <name>javax.jdo.option.ConnectionDriverName</name>   <value>com.microsoft.sqlserver.jdbc.SQLServerDriver</value>   <description>Driver class name for a JDBC metastore</description>
</property><property>   <name>javax.jdo.option.ConnectionURL</name>   <value>jdbc:sqlserver://localhost:1433;DatabaseName=hive_metastore;</value>   <description>     JDBC connect string for a JDBC metastore.     To use SSL to encrypt/authenticate the connection, provide database-specific SSL flag in the connection URL.     For example, jdbc:postgresql://myhost/db?ssl=true for postgres database.   </description>
</property><property>    <name>javax.jdo.option.ConnectionUserName</name>    <value>hive</value>    <description>Username to use against metastore database</description>  </property><property>   <name>javax.jdo.option.ConnectionPassword</name>   <value>hive</value>   <description>password to use against metastore database</description>
</property><property>   <name>hive.metastore.uris</name>   <value>thrift://127.0.0.1:9083</value>   <description>Thrift URI for the remote metastore. Used by metastore client to connect to remote metastore.</description>
</property><property>   <name>hive.metastore.db.type</name>   <value>mssql</value>   <description>     Expects one of [derby, oracle, mysql, mssql, postgres].     Type of database used by the metastore. Information schema &amp; JDBCStorageHandler depend on it.   </description>
</property>

Initialize database structure

Run the following command in Cygwin:

$HIVE_HOME/bin/schematool -dbType mssql -initSchema

If your code runs successfully, the following output will be generated:

Metastore connection URL:        jdbc:sqlserver://localhost:1433;DatabaseName=hive_metastore;
Metastore Connection Driver :    com.microsoft.sqlserver.jdbc.SQLServerDriver
Metastore connection User:       hive
Starting metastore schema initialization to 3.0.0
Initialization script hive-schema-3.0.0.mssql.sqlInitialization script completed
schemaTool completed

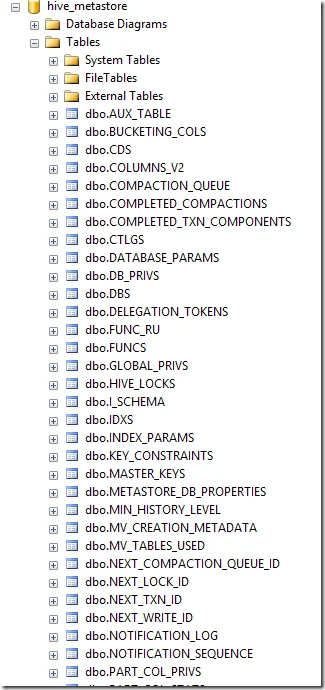

You can also verify the schema in database:

https://api.kontext.tech/resource/b06a1b9b-0ac3-508c-b3db-4db2e93af89e

Start Hive metastore service

$HIVE_HOME/bin/hive --service metastore

And then you can use either beeline or hive CLI to interact with Hive databases:

$HIVE_HOME/bin/beeline -u jdbc:hive2://

Start HiveServer2 service

$HIVE_HOME/bin/hive --service hiveserver2 start

Have fun!
