Raymond Raymond / Teradata

[C#] Connect to Teradata Database via .NET Data Provider

event 2015-05-28 visibility 12,325 comment 3 insights toc
more_vert
insights Stats

In this post, I will demonstrate how to connect to Teradata database via .NET Data Provider for Teradata using C#.

Prerequisites

Install the .NET Data Provider for Teradata from the following link:

Teradata Tools and Utilities Windows Installation Package

Step 1 Create a Console Project

Name it as’' ‘ConsoleApps.Teradata’.

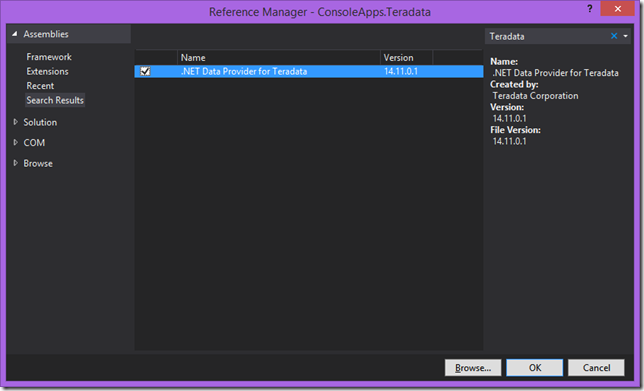

Add reference to library ‘.NET Data Provider for Teradata’ as shown in the following screenshot:


The version in my PC is 14.11.0.1. You can always download the latest version from Teradata official site.

Step 2 Create a method to read data from Teradata

Remember to import the namespace ‘Teradata.Client.Provider’.

using System;
using Teradata.Client.Provider;

namespace ConsoleApps.Teradata
{
    class Program
    {
        static void Main(string[] args)
        {
            DisplayEmployeeInfoFromTeraData();
            Console.ReadLine();

        }

        private static void DisplayEmployeeInfoFromTeraData()
        {
        }
    }
}

Step 3 Implement the method

Create connection, command and adapter objects to read data in a standard ADO.NET way.

The sample code will be similar to what I’ve provided here:

private static void DisplayEmployeeInfoFromTeraData()
        {
            var employeeData = new DataSet();

            var connectionString = "Data Source=192.168.121.128;User ID=dbc;Password=dbc;";
            using (var connection = new TdConnection(connectionString))
            {
                var sql = @"SELECT Emp.EmployeeID,
    Emp.EmployeeName,

    CASE
        WHEN  Emp.Gendar = 'M' THEN 'Dear MR ' || Emp.EmployeeName ELSE 'Dear MS ' ||Emp.EmployeeName
    END AS ""Employee Salutation""
    FROM TD_MS_SAMPLE_DB.Employee Emp; ";
                var command = new TdCommand(sql, connection);
                var adapter = new TdDataAdapter(command);
                connection.Open();
                adapter.Fill(employeeData);
                connection.Close();

            }

            DisplayEmployeeData(employeeData);
        }

        private static void DisplayEmployeeData(DataSet employeeData)
        {
            if (employeeData.Tables != null && employeeData.Tables.Count > 0)
            {
                var employees = employeeData.Tables[0];
                var columnCount = employees.Columns.Count;
                foreach (DataRow row in employees.Rows)
                {
                    for (int i = 0; i < columnCount; i++)
                    {
                        var col = employees.Columns[i];
                        Console.WriteLine("{0} = {1}", col.ColumnName, row[i]);
                    }
                    Console.WriteLine();
                }
                Console.WriteLine("{0} Records", employees.Rows.Count);
            }
        }

In this sample, I am connecting to a local Teradata virtual machine with address as ‘192.168.121.128’. One thing to notice is that all the class names are prefixed with ‘Td’, e.g. Connection class is named TdConnection, Command class is named TdCommand and so forth.

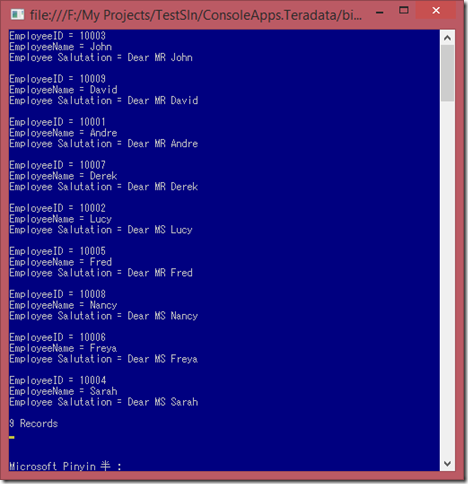

Step 4 The result


Summary

Teradata is used in many data warehousing projects. If you really wants to use it in your OLTP projects, you can connect to it via .NET Data Provider for Teradata or ODBC Teradata provider. The syntax will be similar as connecting to SQL Server, Oracle or any other databases supported by ADO.NET.

More from Kontext
comment Comments
Z Zaid Md #1510 access_time 3 years ago more_vert

Use the Connection Information dialog box to create, edit, and delete data sources for .Net Data Provider for Teradata. The dialog box is also used to connect to existing Teradata.Net data sources.

Data source definitions are saved to a file named DataSources.config.

This file is located in \Users\<username>\AppData\Teradata\SQL Assistant

1. Open Teradata SQL Assistant.

2. Select Teradata .NET from the provider drop-down list, next to the Connect tool button.

3. Click the Connect icon or go to Tools > Connect.

4. Use the Connection Information dialog box to select a .NET data source.

  • Create a new data source by entering the name and server and other applicable information
  • Delete an existing data source by clicking Delete.
  • Use this dialog box to modify existing sources.

5. Use the Advanced tab to make additional changes to a data source.

Defining a .NET Data Provider for Oracle Data Source

1 Open Teradata SQL Assistant.

2 Select Oracle.NET from the provider drop-down list next to the Connect tool button.

3 Click the Connect icon or select Tools > Connect.

4 Use the Connection Information dialog box to select a .NET data source.

  • Create a new data source by entering the name, server, and other applicable information.
  • Delete an existing data source by clicking Delete.
  • Use this dialog box to modify existing sources.

5 Use the Advanced tab to make additional changes to a data source.

hide_source Anonymous #175 access_time 8 years ago more_vert
@Neuwa Rakgajane There will be no much difference whether you want to query from one table or from multiple. You can refer to ADO.NET to understand all the operations you can do with Teradata .Net Data Provider. https://msdn.microsoft.com/en-us/library/e80y5yhx(v=vs.110).aspx In terms of writing complex SQL query, I was planning to create a serial about querying Teradata but have not completed yet. http://kosmisch.net/Blog/DataAndBusinessIntelligence/Archive/2015/5/3/querying-teradata-and-sql-server-tutorial-1-the-select-statement.html
format_quote

person Neuwa Rakgajane access_time 8 years ago

I have been doing the your tutorial on teradata. Aren't there more tutorial where you query multiple tables at once? I wanted to get a practice on those. Please send me a link if you have such tutorial. I mean more advanced queries, your tutorial were so easy to understand, I need such other complex example urgently.
hide_source Anonymous #59 access_time 8 years ago more_vert
I have been doing the your tutorial on teradata. Aren't there more tutorial where you query multiple tables at once? I wanted to get a practice on those. Please send me a link if you have such tutorial. I mean more advanced queries, your tutorial were so easy to understand, I need such other complex example urgently.
