Connect to Hive via HiveServer2 JDBC Driver

This post shows you how to connect to HiveServer2 via Hive JDBC driver in Java.

*The way to connect to HiveServer1 is very similar though the driver names are different:

The JDBC connection URL will also be different:

Add dependency

First we need to add dependency in your project pom file (if you are using Maven):

<project xmlns="http://maven.apache.org/POM/4.0.0"
     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
     xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
     <modelVersion>4.0.0</modelVersion>
     <groupId>kontext.tech</groupId>
     <artifactId>examples</artifactId>
     <version>0.0.1-SNAPSHOT</version>
     <dependencies>
         <dependency>
             <groupId>org.apache.hive</groupId>
             <artifactId>hive-jdbc</artifactId>
             <version>3.1.1</version>
         </dependency>
             <groupId>org.apache.hive</groupId>
             <artifactId>hive-jdbc</artifactId>
             <version>3.1.1</version>
         </dependency>
     </dependencies>
</project>

Or you need to directly reference Hive JAR file.

Create a Java class to connect to HiveServer2

Now, we can connect to HiveServer2 as you can do with any other supported databases.

The following is a sample class for your reference:

package examples;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.ResultSet;
import java.sql.ResultSetMetaData;
import java.sql.SQLException;
import java.sql.Statement;
public class HiveJdbcExample {
    /**
      * HiveServer2 JDBC driver name
      */
     private static String driverName = "org.apache.hive.jdbc.HiveDriver";
    public static void main(String[] args) throws SQLException {
         try {
             Class.forName(driverName);
         } catch (ClassNotFoundException e) {
             e.printStackTrace();
             System.exit(1);
         }
        Connection conn = DriverManager.getConnection("jdbc:hive2://localhost:10000", "hive", "");
         Statement stmt = conn.createStatement();
         // show tables
         String sql = "SHOW databases";
         System.out.println("Running: " + sql);
         ResultSet rs = stmt.executeQuery(sql);
         while (rs.next()) {
             System.out.println(rs.getString(1));
         }
         rs.close();
        String sql2 = "select * from test_db.test_table";
         System.out.println("Running: " + sql2);
         ResultSet rs2 = stmt.executeQuery(sql2);
        ResultSetMetaData rsmd = rs2.getMetaData();
         int columnsNumber = rsmd.getColumnCount();
         while (rs2.next()) {
             for (int i = 1; i <= columnsNumber; i++) {
                 if (i > 1)
                     System.out.print(",  ");
                 String columnValue = rs2.getString(i);
                 System.out.print(rsmd.getColumnName(i) + " " + columnValue);
             }
             System.out.println("");
         }
        rs2.close();
        conn.close();
     }
}

For detailed information about connection URLs (as HiveServer2 service can run in different modes), please refer to the following page published by Apache:

https://cwiki.apache.org/confluence/display/Hive/HiveServer2+Clients#HiveServer2Clients-ConnectionURLs

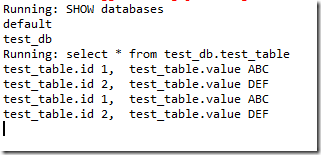

Sample output

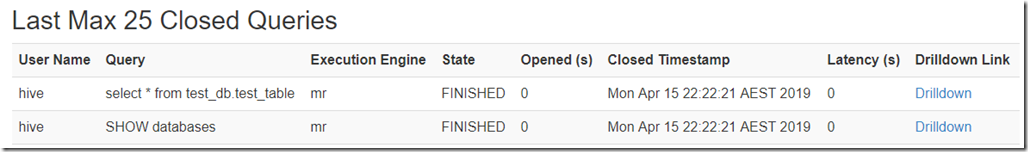

In HiveServer2 Web UI, we can also find the query history:

Clicking Drilldown link, you can also view the query detailed information:
